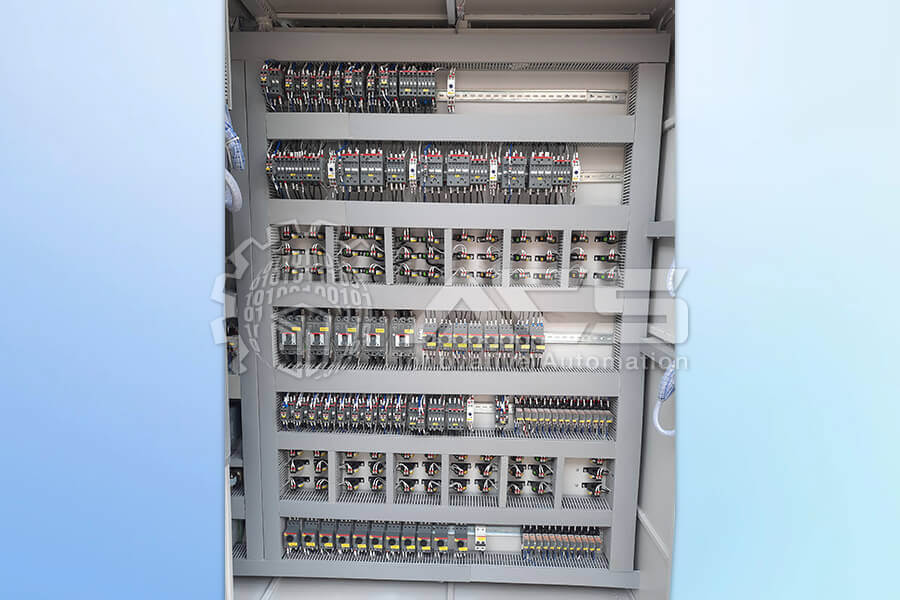

Motor Control Centre *(MCC) Panel

ACS Engitech manufactures Motor Control Centre (MCC) Panels in Compartmentalized and Non-Compartmentalized designs for diverse industrial applications across Gujarat.

Our panels are designed, assembled and tested in compliance with standard industrial norms. These panels are effectively used with motors, submersible pumps, blowers, fans, agitators, RAV and conveyors with sufficient protection from overloads and short circuits.

Highest commissioning MCC Panel of 1600A Incomer with 100 feeders in a single length in the Waste Water Industry.

Reputed brand switchgear — Siemens, Schneider, ABB and L&T

Intelligent MCC with Siemens Simocode, Schneider LTMR, ABB UMC 100.3

Local and remote operation — Auto and Manual modes

Type 2 Co-ordination as per Motor Starter Switchgear selection chart

Technical Standards

Manufacturing *Standards

IEC 61439-1 Compliance

PMCC Panels are designed, assembled and tested according to IEC 61439-1 standard. Each panel undergoes stringent QC checks before final delivery.

CPRI Approved

Our PMCC Panels carry CPRI approval with short circuit test done as per IEC standard 61439. Providing assurance of performance under fault conditions.

EPLAN Design

All electrical drawings designed in EPLAN software — Single Line Diagrams, Three Line Diagrams, Panel Layout, Part Selection and cross-referencing.

Sheet Metal Fabrication

CRCA sheet fabrication at 1.6mm to 3mm thickness. Seven-tank pre-treatment process with two-coat synthetic enamel paint — RAL 7035 or RAL 7032.

IP55 Protection

ERDA approved IP55 protection class cubicle panels against dust ingress and water. Suitable for harsh industrial environments.

In-house Testing

Megger testing at 1000V DC and High Voltage testing at 2.5kV for 1 minute on PCC and MCC panels. Tested by Quality Control Engineers before delivery.

Expertise

ACS Advantage in *MCC Manufacturing

Diverse Applications

MCC Panels for water treatment, steel, plastic, chemical, food processing, FMCG and packaging industries across Gujarat.

Siemens Partnership

As an authorized Siemens Channel Partner since 2014 and System House since 2018, we integrate Siemens technology into every MCC Panel solution.

On-Time Delivery

ERP-linked production process ensures lower error ratios and early lead times. Our 6000 sq.ft facility handles both customized and bulk requirements.
